AERIAL LIFT

19' SCISSOR LIFT

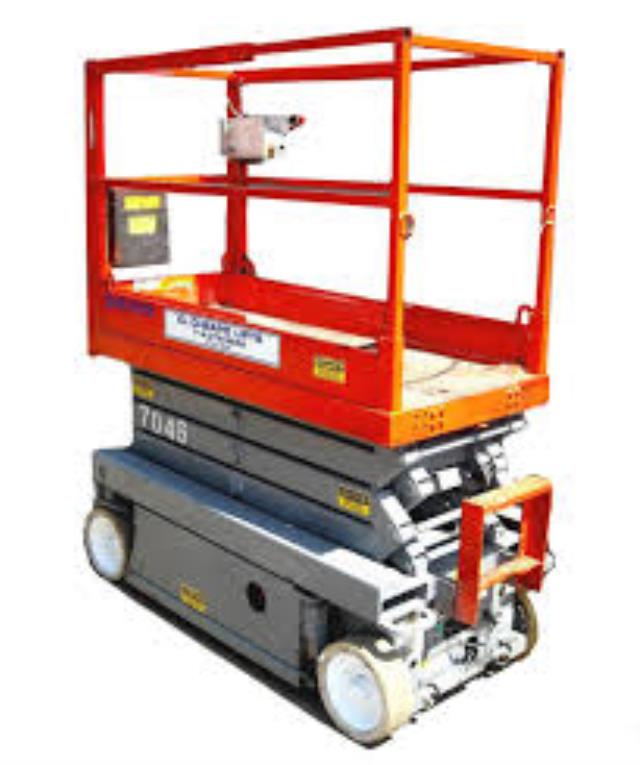

Where to find 19  SCISSOR LIFT in Canton

Image for reference only
Actual item may look different
Click on image for larger view

Comments:
  • THE LIFT IS 32" WIDE.
  • IT GOES UP 19'. IT IS ELECTRIC.
  • !!!!!MUST BE USED ON HARD SURFACE!!!!! CONCRETE OR ASPHALT
  • MAX WEIGHT IN THE BUCKET IS 500LBS.
  • Overview Specifications
  • Work Height 25 (7.6 m)
  • Raised Platform Height 19 (5.8 m)
  • Lowered Platform Height 39 (1.0 m)
  • Overall Width 32 (0.8 m)
  • Overall Length 70 (1.8 m)
  • Stowed Height (Rails Up) 78.5 (2.0 m)
  • Stowed Height (Rails Down) OPT 64.5 (1.6 m)
  • Platform Width (Inside Dimension) 26 (0.7 m)
  • Platform Length (Inside Dimension) 64 (1.6 m)
  • Extension Deck (Roll Out) 3 (0.9 m)
  • Wheelbase 55 (1.4 m)
  • Ground Clearance (Stowed) 2.375 (6.0 cm)
  • Ground Clearance (raised) 0.7 (1.8 cm)
  • Weight 2,580 lbs (1,170 kg)
  • Gradeability 30%
  • Turning Radius (Inside) 0
  • Turning Radius - Outside 66 (1.7 m)
  • Lift Time (With Rated Load) 25 sec
  • Drive Speed (Stowed) 2 mph (3.2 km/h)
  • Drive Speed (Raised) 0.7 mph (1.1 km/h)
  • Maximum Drive Height Full Height
  • Capacity (Overall) 550 lbs (249 kg)
  • Maximum # of Persons 2
Add of the above items to my quote request.




* Prices are subject to change. Applicable sales tax, delivery, and other fees are not included in this price estimate.

* Please call us with any questions you may have about our 19 foot scissor lift in Canton CT, serving the Farmington Valley and Northwest Connecticut.
